Feature：No-intersection ⇒ This is almost non-clogging
Shadis has solved the problem of clogging
which was the weakness of static mixer for many years.

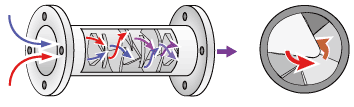

It is achieved by introducing tongue shaped elements that do not have the intersection at the place to be mixed .
Alomst Maintenance free

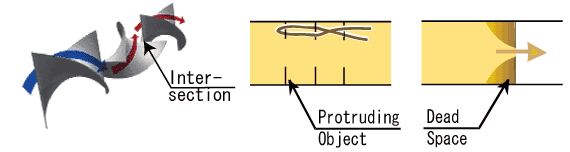

Weaknesses of the other motionless mixers are that they have intersections, protruding objects or dead water space.
- There are many kinds of motionless mixers which offer a more size- and energy-efficient method for mixing or contacting fluids and serve even wider roles.
- It is said,however, that one of the more important disadvantages of these mixers is their relatively high sensitivity to clogging by solids.
Gas absorption is best. Ozone will achieve complete reaction with waste water in the Shardis inside.
The photo below left ････ Methylene blue in the reacter tank
The photo below right････ The clolor of Methylene blue is decolorized after the mixing of wastewater with ozone in the Shardis inside.
※Bubble does not occur until sodium sulfite, which is dissolved in water in the reaction tank, is consumed by injected pure oxygen.
Of course , the exhaust ozone is emitted when the concentration is low .

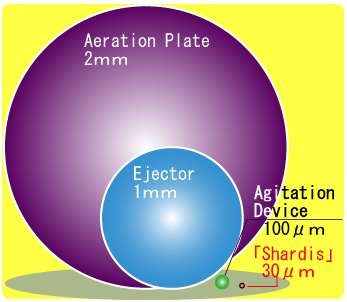

Bubble diameter and Oxygen absorption efficiency

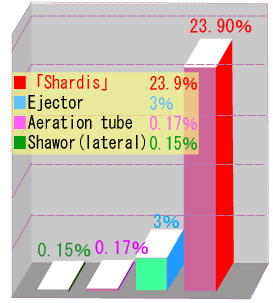

Left ：Comparizon of Bubble Diameter Right：Comparizon of Oxygen adsorption efficiency

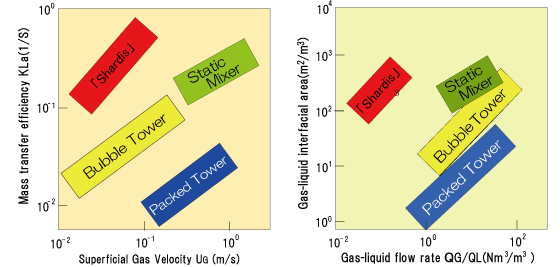

Mass Transfer efficiency and Gas-liquid interfacial area
KLa of Shardis is higher than the other devices, especially in the low-speed gas flow.（Below left）
Even in the range of low gas-liquid flow rate, gas-liquid interfacial area is larger than the other devices.(Below right)

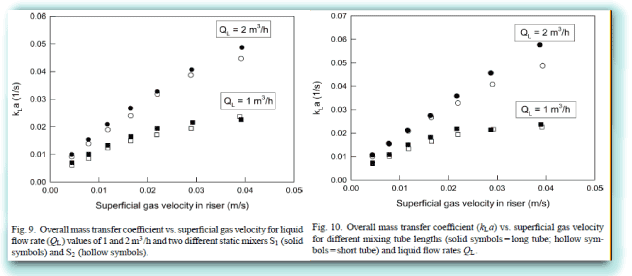

Referrence(below):
"Gas–liquid mass transfer in a novel forced circulation loop reactor",Ali Fadavi,Yusuf Chisti,Chemical Engineering Journal 2005, 73–80

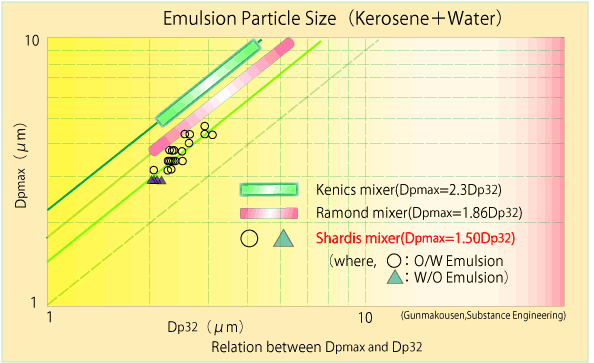

Generate an emulsion with oil and water（Ｗ/Ｏ or Ｏ/Ｗ）

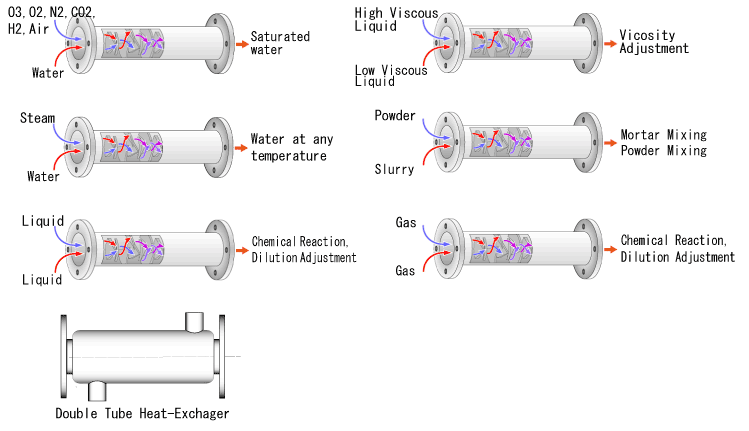

Field that can be used
Field that can be used: Streamlining the mixing process in the chemical industry. Heat exchanger. Ozone sterilization. Waste water treatment ･･･.

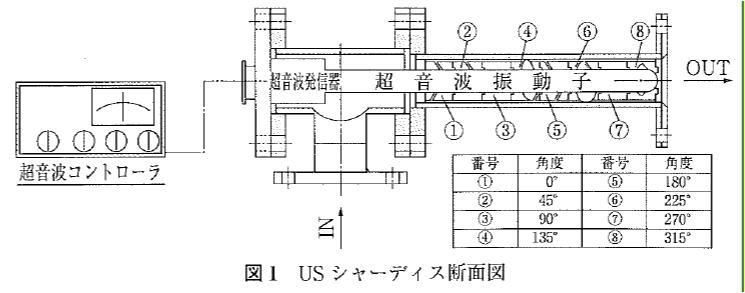

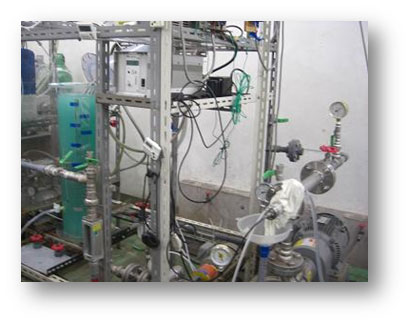

New motionless mixer "Shardis" that is incorporating an ultrasound device .
Process efficiency is greatly increased. We are studying a new AOP method to replace the ozone and hydrogen peroxide.
Actually, we have succeeded in the degradation of 1,4dioxane by the ozone with ultrasound.

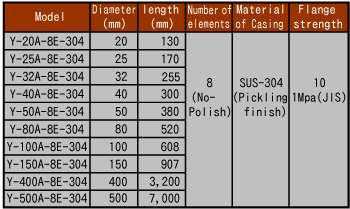

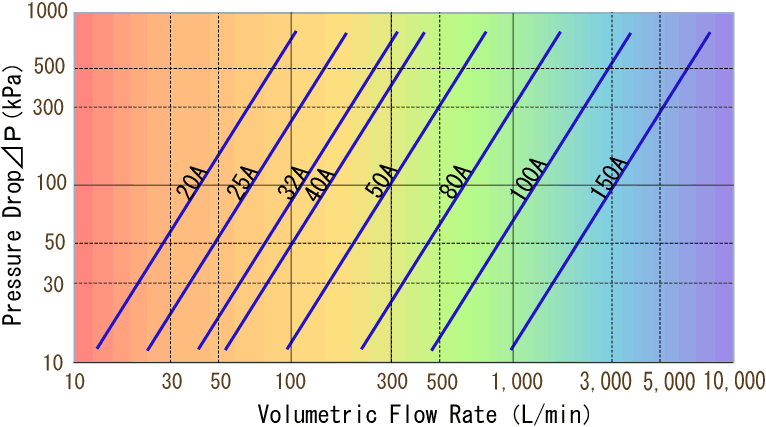

Specification and Puressure Drop
The material specified is SUS-304, but SUS-316L or the Teflon coating is also available
